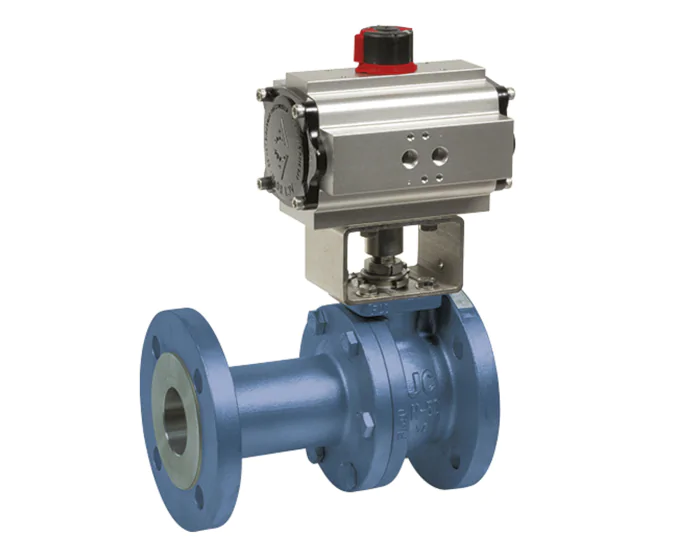

JC valves carbon steel ball valve 340AICG + ADA/ASR pneumatic actuator
€880.69
(excl. btw)
The 340AICG series JC VALVES carbon steel ball valve has an A216WCB body, a CF8M ball and a PTFE+25% glass fiber seats. It is actuated with pneumatic actuation ACTREG ADA/ASR, up to DN150.
Specification
Value
Option certificate 3.1
Yes
Maximum delta P (bar)
10
Operating angle (°)
90
Shaft/stem matérial
Stainless steel 316
Adjustable limit screws
Yes
ATEX compatible
Yes
DN
DN65 - 2''1/2
Face to Face (mm)
230.0
Body material
Carbon steel A216 WCB (1.0619)
ATEX protection mode
Ex c
Number of ways
2
Bore
Full
Position
Normally closed
Packing gland
Graphite
PS (bar)
40
Connections
Flanged PN16
Seats
PTFE-Graphite
Ball material
Stainless steel 316
Surface temperature
TX
TS max (°C)
260
TS min (°C)
-20
Pneumatic actuator type
Double acting
Ball valve design
2-piece body
ATEX zone
1.21.2.22
Warranty period
1 year
CE
Risk category II
Range
JC Valves
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
1395
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 Double acting Flanged PN16
316AICG065015103
S1001319
€880.69
(excl. btw)
add to cart
1396
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 Spring return Flanged PN16
316AICG065016105
S1001320
€1,049.57
(excl. btw)
add to cart
1397
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Double acting Flanged PN16
316AICG080015104
S1001321
€1,029.36
(excl. btw)
add to cart
1398
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Spring return Flanged PN16
316AICG080016106
S1001322
€1,284.51
(excl. btw)
add to cart
1399
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Double acting Flanged PN16
316AICG100015104
S1001323
€1,436.20
(excl. btw)
add to cart
1400
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Spring return Flanged PN16
316AICG100016106
S1001324
€1,654.06
(excl. btw)
add to cart
1401
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN125 - 5'' Double acting Flanged PN16
316AICG125015106
S1001325
€2,733.60
(excl. btw)
add to cart
1402
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN125 - 5'' Spring return Flanged PN16
316AICG125016107
S1001326
€3,326.77
(excl. btw)
add to cart
1403
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' Double acting Flanged PN16
316AICG150015106
S1001327
€3,830.66
(excl. btw)
add to cart
1404
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' Spring return Flanged PN16
316AICG150016108
S1001328
€4,483.73
(excl. btw)
add to cart
1405
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Double acting Flanged PN40
340AICG015015100
S1001329
€383.04
(excl. btw)
add to cart
1406
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Spring return Flanged PN40
340AICG015016101
S1001330
€418.61
(excl. btw)
add to cart
1407
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Double acting Flanged PN40
340AICG020015100
S1001331
€432.31
(excl. btw)
add to cart
1408
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Spring return Flanged PN40
340AICG020016102
S1001332
€504.39
(excl. btw)
add to cart
1409
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Double acting Flanged PN40
340AICG025015101
S1001333
€435.30
(excl. btw)
add to cart
1410
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Spring return Flanged PN40
340AICG025016102
S1001334
€504.50
(excl. btw)
add to cart
1411
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN32 - 1''1/4 Double acting Flanged PN40
340AICG032015101
S1001335
€563.20
(excl. btw)
add to cart
1412
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN32 - 1''1/4 Spring return Flanged PN40
340AICG032016102
S1001336
€619.09
(excl. btw)
add to cart
1413
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 Double acting Flanged PN40
340AICG040015102
S1001337
€591.60
(excl. btw)
add to cart
1414
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 Spring return Flanged PN40
340AICG040016103
S1001338
€632.36
(excl. btw)
add to cart
1415
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Double acting Flanged PN40
340AICG050015102
S1001339
€684.56
(excl. btw)
add to cart
1416
Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Spring return Flanged PN40
340AICG050016104
S1001340
€791.36
(excl. btw)
add to cart
